    1070mm Fork Length LPG Gasoline 3T Reach Forklift Trucks

    Ask Lasest Price
    Brand Name : CNC Hardware
    Model Number : FG20 gasoline forklift
    Certification : CE/ ISO9001/ EPA
    Price :
    Payment Terms : T/T, L/C
    Supply Ability : 200 sets per month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

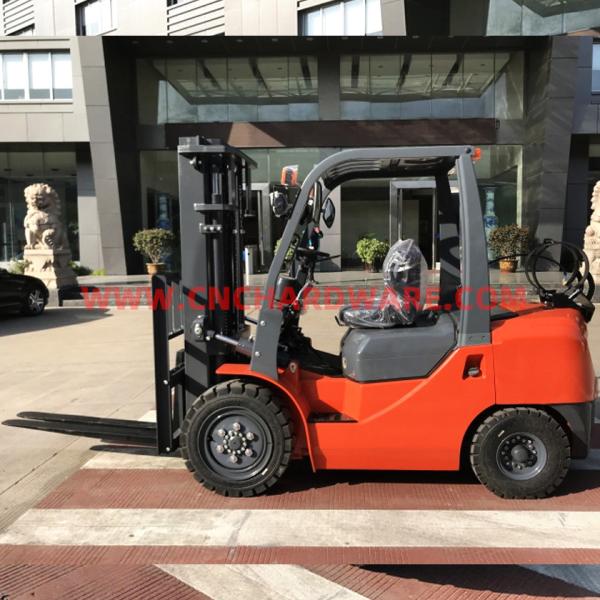

    1070mm Fork Length LPG Gasoline 3T Reach Forklift Trucks

    Equipped With Nissan K25 EPA Standard Approved Engine 2 Ton 3 Ton LPG Gasoline Forklift


    Features of the 2 ton 3 ton LPG Gasoline forklift

    • Equipped with the powerful and efficient Nissan K25 EPA approved engine with excellent environmental performance; Chinese local brand engines are optional.
    • Equipped with the USA IMPCO gas system, which is more reliable.
    • Thicker reinforcing plate ensures the safety and efficiency.
    • New designed overhead guard protective device prevent the sudden accidents.

    Specifications of the EPA Standard approved engine 2 ton 3 ton LPG Gasoline forklift
    ManufacturerCNCHardware
    ModelPower shift T/MFG20
    Manual shift T/MFG20
    Load capacitykg2000
    Load centermm500
    Power unitGasoline/LPG
    Operator typeDriver/seat
    Tire typeFront/rearPneumatic
    WheelFront/rear2/2
    Max. lifting heightmm3000
    Free liftmm160
    Fork sizeL*W*Tmm1070*122*40
    Tilt rangeMast forward/backwarddeg6/12
    Overall length(without fork)mm2460
    Total widthmm1150
    Mast height (fork lowering)mm1995
    Overall height fork raisedWith backrestmm4030
    Height to head guardmm2120
    Turning radius(outside)mm2170
    Front face of fork to front axlemm450
    Min. right angle stacking aisle

    without load

    length & clearance

    mm2615
    Speed

    Max Travelling

    full/no load

    km/h17/19

    Lifting

    full/no load

    mm/s550/580

    Lowering

    full/no load

    mm/s450/550
    Max.drawbar pull

    Power shift T/M

    full/no load

    kg1650/830

    Manual shift T/M

    full/no load

    kg1700/830
    Gradeability at 1.6km/h

    Power shift T/M

    full/no load

    %25/20

    Manual shift T/M

    full/no load

    %25/20
    Truck weightkg3240
    Weight distributionFull load front/rearkg4660/580
    No load front/rearkg1470/1770
    TiresNumberfront/rear2/2
    Modelfront axle7.00-12-12PR
    rear axle6.00-9-10PR
    Wheelbasemm1600
    TreadFront/rearmm970/970
    Ground clearanceAt lowest point (mast)mm110
    Framemm115
    BrakeService brakeHydraulic-foot pedal
    Parking brakeMechanical-hand lever
    BatteryVoltage/capacityV/AH12/60
    EngineModelNissan K25 EPA engine
    Rated powerPS(kw/rpm)47/2250(34.6/2250)
    Rated torquekg-m max.(N.m)15.7/1600(153/1600)
    Number of cylinders4
    PlacementL2.065
    Fuel tank capacityL70
    TransmissionSpeed forward/backward

    Power shift T/M

    Manual shift T/M

    1-1 power shift T/M
    2-2 manual shiftT/M
    Operating pressureHydraulic system pressurekg/cm²180

    1070mm Fork Length LPG Gasoline 3T Reach Forklift Trucks

    How to choose a gasoline forklift?

    Load Capacity:

    • The higher you are lifting a load the lower the capacity will become.
    • if you add an attachment this will also effect the unit's capacity.
    • Non-standard over sized goods will cause load center move forward to effect capacity.

    Lift Height & Collapsed Height:

    Besides how high you want to lift up your material, you also need to pay attention to forklift collapsed height for reasons: low doors you need to passby, ceilings in the building you are working, ceilings in the trucks you are loading/unloading.


    Environment:

    • Depending on environment in door or outdoor: diesel, gas/LPG or battery forklift
    • Ground in good condition or with stones or scraps everywhere: what types of tire is proper, air tires, solid tires or no-marking tires?
    • Special environment: cold storage etc.
