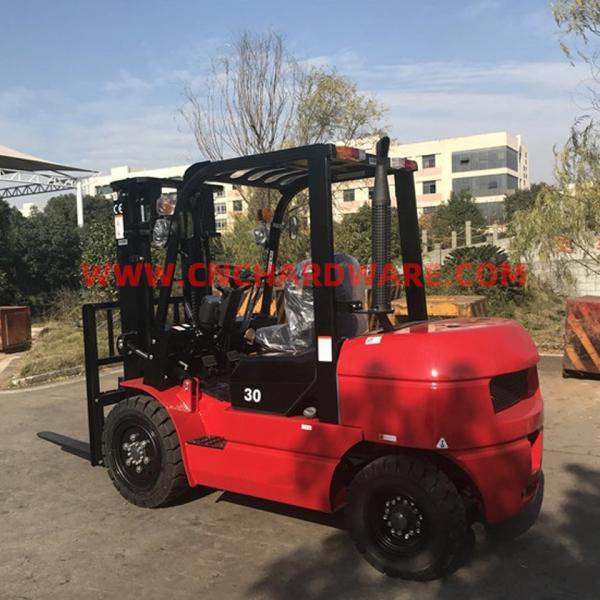

FD30 FD50 Farm Forklift Counterbalance Forklift 3 Ton To 5 Ton
Service Weight Diesel Forklift
What Certificate do you have for the 3 ton to 5 ton Service Weight
diesel forklift?
Our workshop meet with the ISO9001:2008 Quality System.
All of our diesel forklifts have CE certificates. Some of them even
meets the EPA standard.
Do you customize and design the diesel forklift as the clients'
requirement?
We will try the best to meet all kinds of clients' special
requirements.
However, All the customizing and refit should be implemented safely
and scientifically.
The colors can be painted as your need.
How long is the warranty of your diesel forklift?
Basically it’s 1 year or 2000 working hours whichever occurs first.
| Specifications of the 3 ton to 5 ton Service Weight diesel forklift |
| Features | Manufacturer | | | CNCHardware | CNCHardware |
| Model | | Power shift T/M | FD30 | FD50 |
| | Manual shift T/M | FD30 | |
| Load capacity | | kg | 3000 | 5000 |
| Load center | | mm | 500 | 500 |
| Power unit | | | Diese | Diesel |
| Operator type | | | Driver/seat | Driver/seat |
| Tire type | Front/rear | | Pneumatic | Pneumatic |
| Wheel | Front/rear | | 2/2 | 2/2 |
| Dimension | Max. lifting height | | mm | 3000 | 3000 |
| Free lift | | mm | 150 | 150 |
| Fork size | L*W*T | mm | 1070*125*45 | 1070*150*55 |
| Tilt range | Mast forward/backward | deg | 6/12 | 6/12 |
| Overall length (without fork) | | mm | 2730 | 3245 |
| Total width | | mm | 1225 | 1430 |
| Mast height (fork lowering) | | mm | 2115 | 2270 |
| Overall height fork raised | With backrest | mm | 4160 | 4110 |
| Height to head guard | | mm | 2090 | 2265 |
| Turning radius (outside) | | mm | 2445 | 2910 |
| Front face of fork to front axle | | mm | 480 | 560 |
| Min. right angle stacking aisle | without load length & clearance | mm | 2925 | 4585 |
| Performance | Speed | Max Travelling full/no load | km/h | 18/19.5 | 18/19 |
| Lifting full/no load | mm/s | 450/500 | 410/430 |
| Lowering full/no load | mm/s | 450/450 | 380/340 |
| Weight | Truck weight | | kg | 4300 | 6980 |
| Weight distribution | Full load front/rear | kg | 6490/890 | 10780/1290 |
| No load front/rear | kg | 1670/2700 | 2780/4450 |
| Frame | Tires | Number | front/rear | 2/2 | 2/2 |
| Model | front axle | 28x9-15-12PR | 8.25x15-14PR |
| rear axle | 6.50-10-10PR | 8.25x15-14PR |
| Wheelbase | | mm | 1700 | 2100 |
| Tread | Front/rear | mm | 1000/970 | 1470/1700 |
| Ground clearance | At lowest point(mast) | mm | 135 | 170 |
| Frame | mm | 135 | 170 |
| Brake | Service brake | | Hydraulic-foot pedal | power brake |
| Parking brake | | Mechanical-hand lever | Mechanical-hand lever |
| Engine | Battery | Voltage/capacity | V/AH | 12/80 | 2x12V-80AH |
| Engine | Model | | ISUZU C240 | MITSUBISHI S6S |
| Rated power | kw/rpm | 35.4/2500 | 52/2300 |
| Rated torque | N.m/rpm | 139/1800 | 248/1700 |
| Number of cylinders | | 4 | 6 |
| Placement | L | 2.369 | 4.996 |
| Fuel tank capacity | L | 70 | 80 |
| Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M 2-2 manual shift T/M | 2-1 power shift T/M |
| Operating pressure | Hydraulic system pressure | kg/cm² | 180 | 200 |
Can your diesel forklift get labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
What payment policy do you accept?
30% T/T in advance as deposit, balance paid before shipment.
After-sale Services
- We always treat after-sale service important as the same as product
quality.
- CNC Hardware grants our clients a twelve-month-period or 2000-hours
warranty for any machine purchased from us.
- We can also help clients coordinate with trained service personnel
to provide you detailed and extensive knowledge about your specific
machine.
- With our technical advises, your machine service life can be
significantly prolonged and sustained with high capacity.
