12-Station Turret CNC Multi Turrets CNC Turning Machine

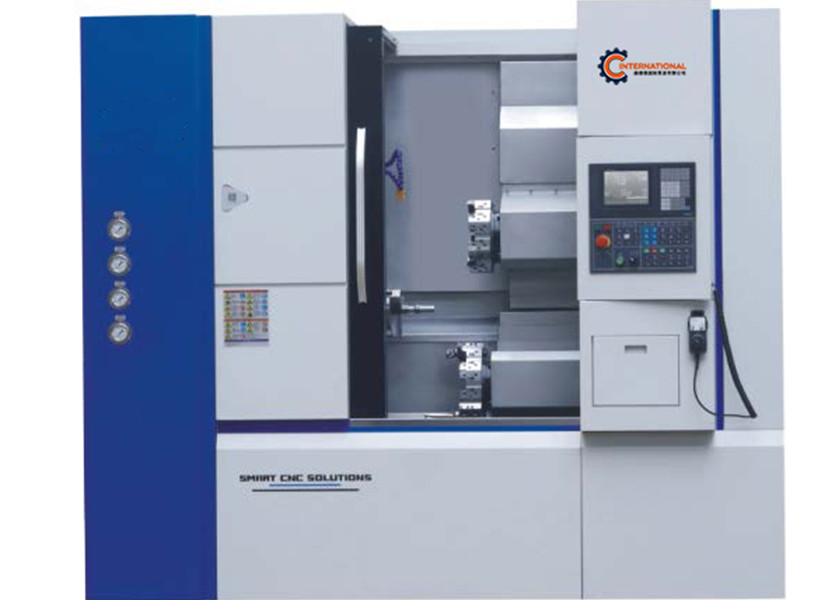

GT260V CNC Turning Machine Specification and Options

CNC Turning Machine Standard Features

• Hydraulic 3-Jaw Chuck
• 8-Station Turret
• Full Guard
• Work Light
• Tri-Color Alarm Light
• Automatic Lubrication System
• Automatic Coolant System

CNC Turning Machine Optional Features

• 12-Station Turret
• Different Chucks and Collets
• Different CNC Control Systems
• Different Spindle Speed and Bore Dia
• Chip Conveyor
• Tool Setter
• Bar Feeder
• Gang Type Tool Holders
• Parts Catcher
• Tailstock
• Driven tool Turret

User Friendly Operability of Our GT260V CNC Turning Machine

• The ergonomically designed operator interface is situated at an optimal height and has a swing arm to allow the operator to adjust the interface angle for ease and convenience.
• Frequently used buttons are conveniently located and easy to press. The MPG is a standard option and provides optimal visibility during machine set-ups.
• This improves workability and helps
• malfunctions and mistakes.
• The difference in height of operators was considered in the design of the door handles.
• The door handle is elongated for easier opening and closing of the door.
• An enclosure for tooling and supplies is located just under the control panel.
• A separate coolant tank makes clean-up easy.
• The automatic lubrication pump is located in an enclosure near the operator.
• It has a clear glass door for easy observation.
• Enclosing the pump keeps away chips and other contaminants.
• Hydraulic Dashboard are in the left and front side, chuck, turrets and general hydraulic pressure are all observed clear and neat.

GT260V CNC Turning Machine Servo Turret
High Speed
The turret uses servo motors to shift the tool position which reduce tool change time essentially.

Heavy Duty
The turret uses hydraulic system to clutch.
Powerful tool clamping minimizes tool tip deviation due to load, which displays excellent performance during heavy duty cutting.

High Accuracy
The turret uses high-precision tooth couplings for accurate positioning.
As double channel system with double turrets, all those advanced technology enlarged 2 times on GT260V.
Machining cycle time is reduced, which improves productivity tremendously.
