    Ball valve processing machinery 6 stations 8 spindles vertical rotary transfer machine

    Ask Lasest Price
    Brand Name : MW
    Model Number : MW-G6Z8-SS
    Certification : CE
    Price : USD22000-30000/SET
    Payment Terms : T/T, L/C
    Supply Ability : 3 sets per month
    Delivery Time : 50 Days
    • Product Details
    • Company Profile

    Ball valve processing machinery 6 stations 8 spindles vertical rotary transfer machine


    The features of the MWS8G10Z-YY Rotary Vertical Transfer Machine

    • 6-station 8-Spindles
    • One time finish
    • High efficiency
    • Fast speed
    • Italian technology
    • Engineering support from Taiwan
    • Function: boring/threading/groove
    • Flexible and convenient operation control
    • Connect intelligent manufacturing control system
    • With Italian technology customized line rail power head
    • Fix long-range technology support
    • Processing time of 5-6 seconds for one ball valve, with improved precision and efficiency
    • The servo driving motor makes the machine more stable and efficient.

    Technical Details

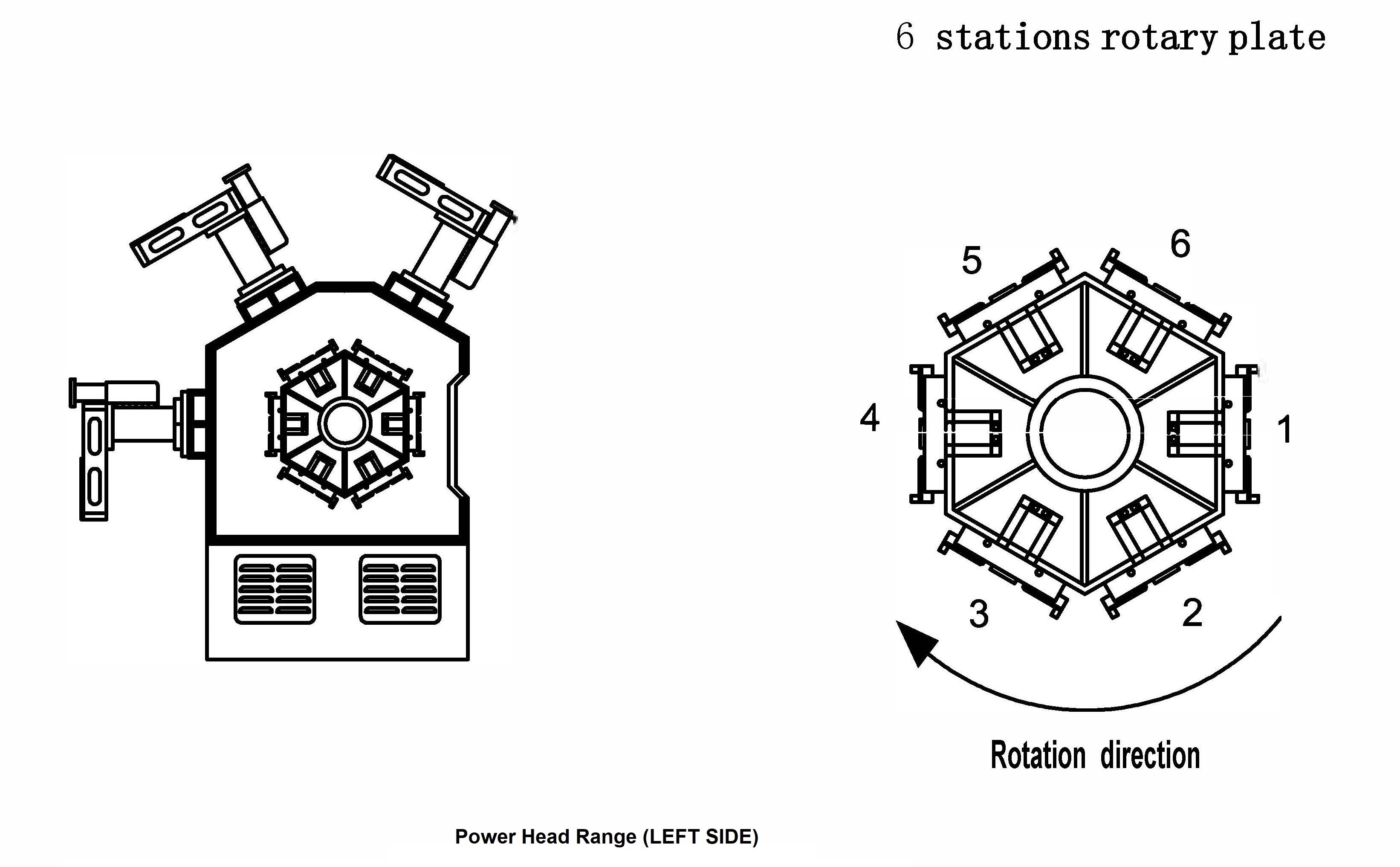

    Clamping No.Power head range (left side)Power head range (Top)Power head range (Right side)
    1Feeding / Picking
    2

    1#spindle: ServoΦ110

    Drilling, Roughly hole drilling

    3

    2#Spindle: ServoΦ110

    Boring, Fine boring

    4

    3#Spindle: ServoΦ110,

    Hole drilling

    4#Spindle: ServoΦ110

    Hole drilling

    5

    5#Spindle: ServoΦ110

    Boring, hole and groove boring

    6

    6#Spindle: Servo Φ110

    Threading (FM)

    7#Spindle: ServoΦ110

    Threading

    8#spindle, ServoΦ110

    Threading
